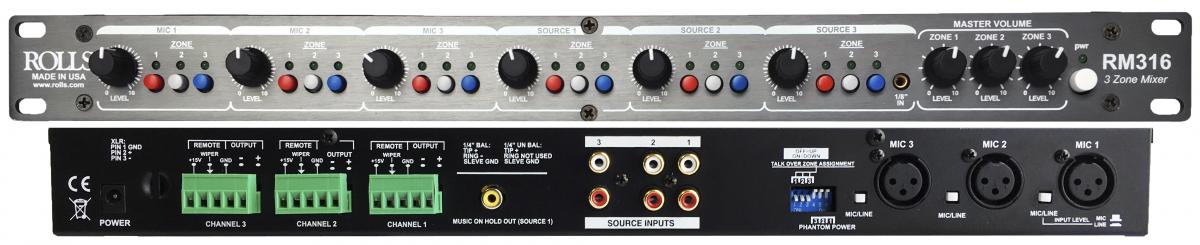

RM316 Three Zone Mixer


  • Description
  • Specifications



Introducing the all-new ROLLS RM316 Three Zone Mixer, a versatile audio solution that effortlessly combines three microphones or XLR line level signals with three RCA line level source inputs. With convenient switch selection, you can easily direct the signals to any combination of three zone outputs. Each output is equipped with balanced phoenix connectors, ensuring reliable connections.

Experience ultimate control with the remote volume feature, allowing you to adjust the volume externally for each zone. The Microphone inputs also boast convenient selectable ducking and paging options for individual zones.

Whether you′re in the front or rear, the RM316 offers user-friendly operation while meeting the demands of even the most intricate three zone installations. Its seamless functionality makes it the perfect choice for a variety of settings, including restaurants, offices, nightclubs, and more. Elevate your audio experience with the ROLLS RM316 Three Zone Mixer.

Manual

Hi Res. Image

  • Input Impedance: 10K Ohms balanced Line
  • Output Impedance: 50 Ohms balanced
  • Max Input Level: Mic: -30 dB Source: 22 dB
  • Phantom Power: 15 Volts DC
  • Max Gain: 60 dB mic 30 dB line
  • S/N Ratio: >75 dB
  • THD: < .3%
  • IMD (SMPTE): < .3%
  • CMRR: 60 dB
  • Frequency Response: 20Hz to 20kHz /- 0 dB
  • Size: 19” x 1.75” x 6.5”
  • Three Mic Inputs with independent switchable phantom power
  • Three RCA source inputs and one front panel 3.5mm stereo input
  • Three Balanced Phoenix Connector Zone Outputs
  • Remote Volume for each output
